Nx Witness v5.0

Nx Witness VMS v5.0 is a full featured release focused on cyber security, enhanced usability of existing features, and new interactivity features.

Nx Witness v5.0 Overview

Get it today on My Nx or Nx Cloud.



Key Features of v5.0

Advanced Object Search • Metadata Driven Archive Backup Options • Web Page Proxy via Servers • Two Factor Authentication (2FA) • Resource Grouping • Audio Mapping • Desktop Client Automatic Updates • Encrypted Archives • Server Location ID for Failover • Server Web Admin Interface Redesign • Video Preview Thumbnails • More Secured Connections

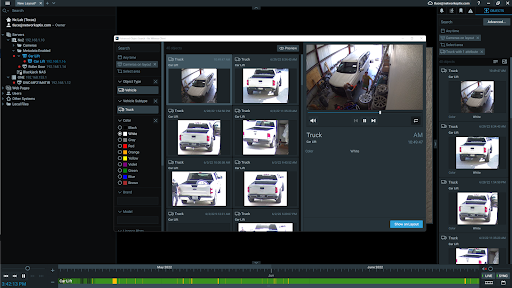

Advanced Object Search



ADVANCED OBJECT SEARCH

Operators can now use the new Advanced Object Search to search for objects identified by analytics and stored in video archives by attributes (e.g. object type, color, gender, age, clothing, etc) in a new pop-out window.

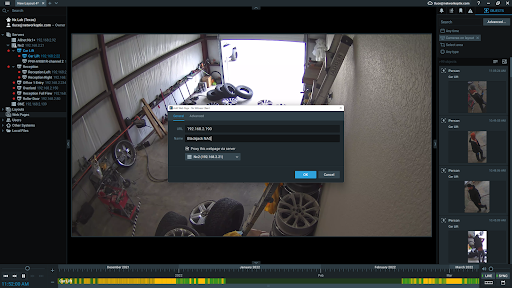

Web Page Proxy via Server



WEB PAGE PROXY VIA SERVER

Local device or on-prem application web pages can be proxied via the Server application and viewed via a remote secured connection. This allows for easy, secure access to integrated security products / devices as well as management of underlying IT infrastructure and related services.

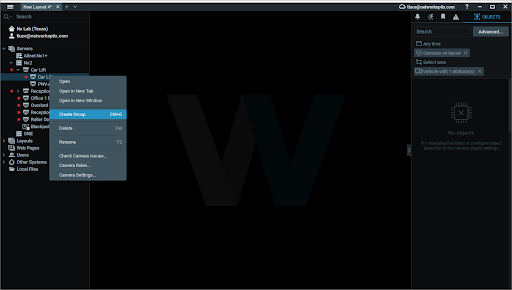

Resource Grouping



RESOURCE GROUPING

Operators can now group resources (cameras, streams, encoders, web pages) in Nx Desktop which can be used in roles and permissions, and for faster navigation of large systems. Note: Groups are limited to the Server level and will disappear if dragged.

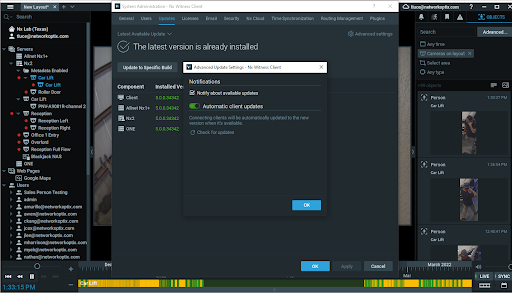

Desktop Client Automatic Updates


DESKTOP CLIENT AUTO UPDATES

Nx Desktop client is no longer tied to the Nx Server or Nx Cloud applications when updating to a later version. When enabled, Nx Desktop will download any available updates in the background and will prompt users to restart to receive the latest version. Auto-updates are optional and users can choose to disable them.

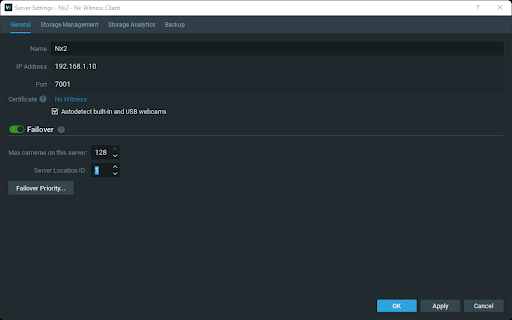

Server Location ID for Failover



SERVER LOCATION ID FOR FAILOVER

Allows System Administrators to assign a Location ID to Servers in multi-Server WAN-based Systems. This allows operators to define a Server or pool of Servers that are physically located near the affected cameras as failover Servers to prevent failover to remote Servers which could result in frame dropping over weaker network connections.

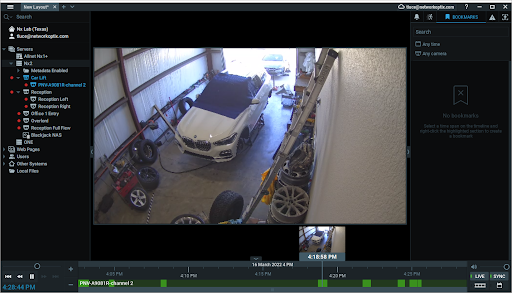

Video Preview Thumbnails



VIDEO PREVIEW THUMBNAILS

In Windows and MacOS Desktop clients users can now hover over the timeline to preview video in thumbnail format.



Metadata-Driven Archive Backup Options



METADATA DRIVEN ARCHIVE BACKUP

In addition to being able to do real-time, scheduled, or on-demand backups, archive backups can now be configured to allow backup of recorded video archives based on associated system metadata – including motion, bookmarks, or objects.



Two Factor Authentication



TWO FACTOR AUTHENTICATION (2FA)

Cloud connected systems can now utilize 2 factor authentication. This is a system wide setting and forces all users with Cloud accounts to use an authentication app (Cloud supports Google Authenticator, Microsoft Authenticator or Duo Mobile) to verify their identity before logging in to a System.



Audio Mapping



AUDIO MAPPING

Operators can use audio capabilities from different devices together. For example, an audio source from a camera or I/O module with a microphone can be used as an audio source for another camera. Another example – a 2 way audio button can be placed on a camera without a microphone and used with a different camera that has a speaker attached to it.



Encrypted Archives



ENCRYPTED ARCHIVES

When enabled, recorded video archives will be encrypted and viewable only in the Desktop, Mobile, and Web clients. Works on any hard drive or storage medium. System owner creates the encryption key.



Server Web Admin Interface Redesign



Server Web Admin Interface Redesign

The Server Web Admin interface has been redesigned to allow administrators to add and remove users, as well as view detailed information about Servers, Cameras, and Licenses.



DESKTOP CLIENT JAVASCRIPT API

A brand new Client Javascript API embedded in Web Pages allows developers to create browser-to-client interactions, allowing custom web apps to drive Desktop Client behaviors, including:

  • Open/close cameras
  • Play/pause videos
  • Available now on Github
MORE SECURE CONNECTIONS

All VMS Server connections use SSL/TLS Certificate pinning to render man-in-the-middle attacks impossible. VMS Servers and Clients also use new session-based (bearer token) authentication by default.

REVAMPED SERVER API
  • A new Server HTTP API has been introduced, designed in RESTful style instead of the RPC style of the old HTTP API.
    • Features missing from the new API are still covered by the old API and will be added to the new API over time.
    • The old API will be supported for several upcoming VMS releases but may become officially deprecated in a future version.
    • The Server WebAdmin now includes documentation for the new API.
  • /api/systemSettings is now available only for the system owner and administrators.
  • Added GET and POST handler support to the Server for "/api/createEvent" requests.
  • Subsections within analytics sections did not show up on the Plugins tab in System Administration. Fixed.
  • The Server parameters “motionType” and “backupDaysOfTheWeek” were incorrectly represented in JSON. Fixed.
  • Added an option to allow ec2/cameraThumbnail to retrieve the stream’s live image.
  • Introduced the defaultRemovableDriveState VMS server configuration parameter to replace allowRemovableStorages

Improvements in Nx Witness v5.0





NEW SYSTEM SETTING AND GENERAL IMPROVEMENTS TO HTTPS CAMERAS
  • Some cameras did not work in the HTTPS-only mode. Fixed.
  • Introduced a system-wide setting that forces HTTPS only communication for cameras (System Administration -> “Use only HTTPS to connect to cameras”). If this setting is enabled, the server will drop connections to cameras that do not support HTTPS or a supported proprietary API protocol.
REDESIGNED FISHEYE CONTROLS

Added hotkeys to turn and zoom in/out.

NEW ARCHIVE BACKUP OPTIONS
  • Archive associated with one event type: recorded motion, bookmarks, or objects.
  • Archive associated with all combinations of event types:
    • motion and bookmarks
    • bookmarks and objects
    • motion and objects
    • motion, objects, and bookmarks
  • The entire recorded archive
IMPROVED TOOLTIPS IN THE RESOURCE PANEL
  • Minimal delay when viewing the video preview thumbnail for cameras with recording enabled.
  • When hovering over a resource, the video preview thumbnail updates every 2-3 seconds.
  • “Preview is outdated” text is displayed over the video preview thumbnail if it has not been updated in over 15 minutes.
ADDED THE FOLLOWING HOTKEYS TO INTERACT WITH THE RESOURCE TREE
  • Ctrl (Cmd) + F – selects the search box.
  • Up/down arrow key – shifts selection between the search box and items in the Resource Tree.
IMPROVED "CAMERA SETTINGS" DIALOGS
  • Added new recording modes to the Recording Schedule:
  • Object only
  • Object + Low res
  • Motion + Object
  • Motion + Object + Low res
  • If the Recording Schedule is invalid, an exclamation mark icon will be displayed in the Resource Tree and a notification with the message “Recording schedule is invalid” will appear in the Notifications Panel. The recording mode will be set to “Always” until the issue is resolved.
  • Added the option to select a camera stream to use for object detection (see Motion tab).
  • Configuring a camera is more straightforward and reduces the chance of making mistakes.
  • The Recording Schedule on auto-discovered cameras comes with the following settings by default:
    • Recording type: Motion Only
    • Quality: High
    • FPS: Max
  • Removed the option “Keep camera streams and profile settings” for RTSP/HTTP streams.
  • The “FPS” and “Quality” fields on the Recording tab will be disabled if “Keep camera streams and profile settings” is enabled or “Allow system to optimize camera settings” is disabled.
  • The Recording tab better alerts the user when there are not enough licenses on the system.
  • A warning banner on the Analytics tab will be shown when recording is not enabled on the camera.
  • PTZ sensitivity can now be modified in the Expert tab.
  • The mount correction angle preview now shows a virtual rotation of the camera around its optical axis.
ADDED NEW HOTKEYS FOR TIMELINE ACTIONS
  • Press the [ key to set the starting point of a timeline selection based on the mouse pointer’s position over the timeline.
  • Press the ] key to set the ending point of a timeline selection based on the mouse pointer’s position over the timeline.
REDESIGNED THE IN-CLIENT USER MANUAL
  • Modern look and feel
  • Improved search tool
  • Collapsible/expandable topics
